| Model |
FT-100S2 |
FT-200S2 |
FT-300S2 |
FT-400S2 |
| Rated power |
100W |
200W |
300W |
400W |
| Maximum power |
130W |
220W |
310W |
410W |
| Rated voltage |
12V/24V |
12V/24V |
12V/24V |
24V |
| Start up wind speed |
2.0m/s |
2.0m/s |
2.0m/s |
2.0m/s |
| Rated wind speed |
10m/s |
11.5m/s |
13m/s |
13m/s |
| Survival wind speed |
55m/s |
55m/s |
50m/s |
50m/s |
| Top net weight |
5kg |
5.2kg |
5.6kg |
5.8kg |
| Wheel diameter |
1.2m |
1.3m |
1.35m |
1.4m |
| Blades number |
3/5 |

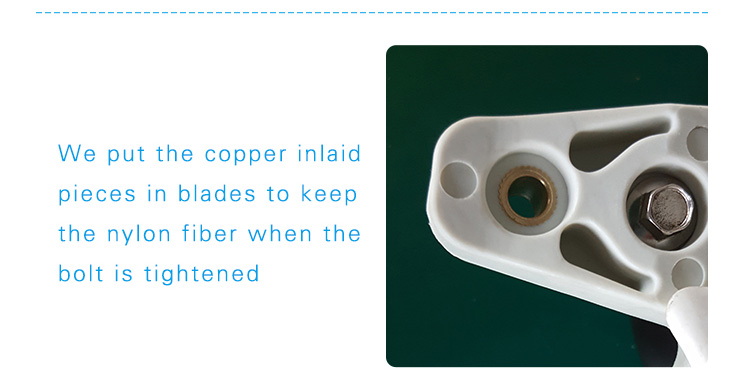

| Blades material |
Nylon fiber |

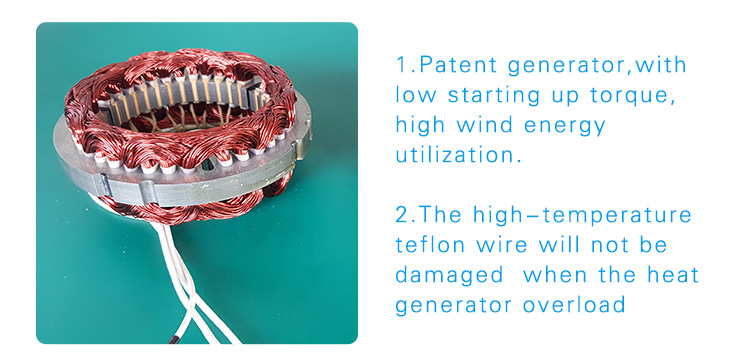

| Generator |
Three phase permanent magnet ac generator |
| Magnetic steel |
NdFeB |
| Generator case |
Die-casting aluminum |
| Control system |
Electromagnet |
|
|
|
|
