| Model |
FT-400M2 |
FT-500M2 |
FT-600M2 |
| Rated power |
400W |
500W |
600W |
| Maximum power |
420W |
520W |
610W |
| Rated voltage |
24V |
24V/48V |
24V/48V |
| Start up wind speed |
2.5m/s |
2.5m/s |
2.5m/s |
| Rated wind speed |
11m/s |
11.5m/s |
12m/s |
| Survival wind speed |
45m/s |
45m/s |
45m/s |
| Top net weight |
14.5kg |
15kg |
15.5kg |
| Wheel diameter |
1.7m |
1.75m |
1.8m |
| Blades number |
3/5 |

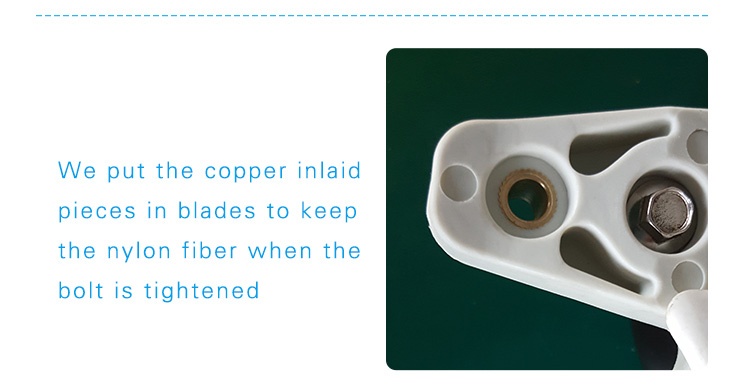

| Blades material |
Nylon fiber |

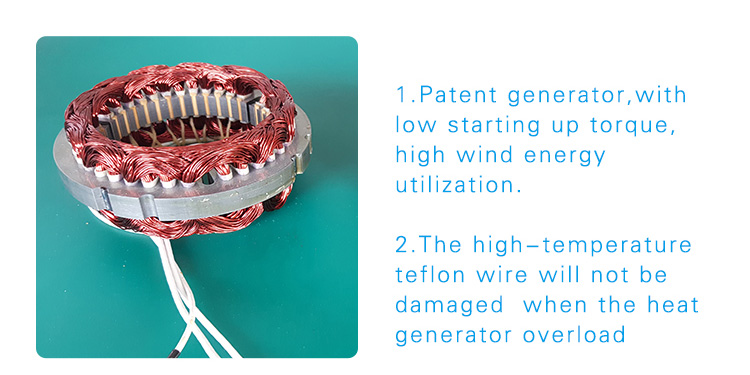

| Generator |
Three phase permanent magnet ac generator |
| Magnetic steel |
NdFeB |
| Generator case |
Die-casting aluminum |
| Control system |
Electromagnet |
| Speed regulation |
Automatically adjust windward |
| Working temperature |
-40¡æ¡«80¡æ |
|
|
|
|
