| Model |
FT-3000G |
FT-5000G |
FT-10000G |
| Rated power |
3kW |
5kW |
10kW |
| Maximum power |
3.5kW |
5.5kW |
12kW |
| Rated voltage |
48V/96V/120V |
96V/120V/220V |
96V/120V/220V/360V |
| Start up wind speed |
2.5m/s |
2.5m/s |
2.5m/s |
| Rated wind speed |
11m/s |
11m/s |
11m/s |
| Survival wind speed |
45m/s |
45m/s |
45m/s |
| Top net weight |
205kg |
285kg |
400kg |
| Wheel diameter |
5.2m |
6.1m |
7.8m |
| Blades number |
3 |

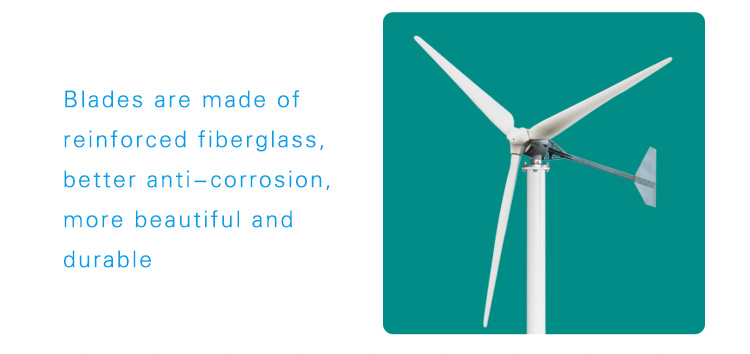

| Blades material |
Reinforced glass fiber |

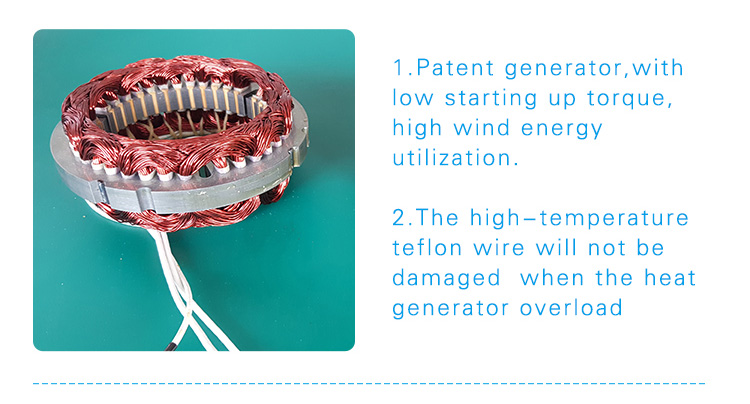

| Generator |
Three phase permanent magnet ac generator |
| Magnetic steel |
NdFeB |
| Generator case |
Die-casting aluminum |
| Control system |
Electromagnet/ wind wheel yaw |
| Speed regulation |
Automatically adjust windward |
| Working temperature |
-40¡æ¡«80¡æ |
| Lubrication |
Grease injection |
|
|
|
|
