Model FT-10k FT-20k FT-30k FT-50k FT-100k
Rated power 10kW 20kW 30kW 50kW 100kW
Maximum power 12kW 23kW 33kW 55kW 110kW
Rated voltage 120V/220V 220V/360V 360V 360V 360V
Start up wind speed 2.5m/s 2.5m/s 2.5m/s 2.5m/s 2.5m/s
Rated wind speed 10m/s 10m/s 10m/s 10m/s 10m/s
Survival wind speed 45m/s 45m/s 45m/s 45m/s 45m/s
Top net weight
Wheel diameter 7.8m 10m 12m 18m 22m
Blades number 3

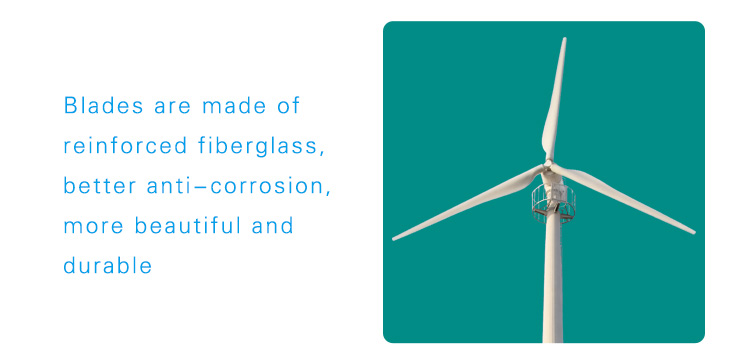

Blades material Reinforced glass fiber

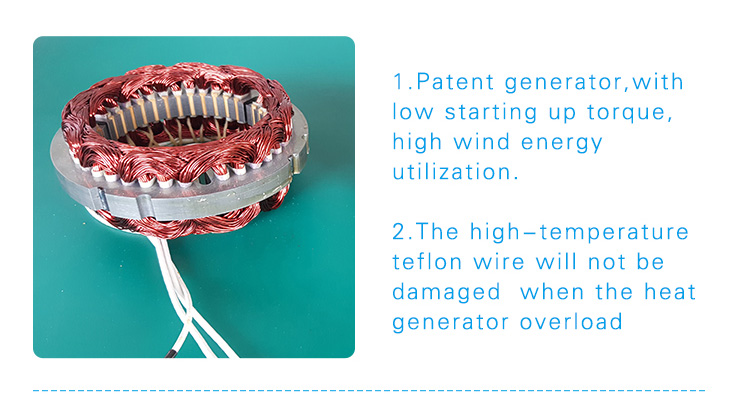

Generator Three phase permanent magnet ac generator
Magnetic steel NdFeB
Generator case Carbon steel
Control system Electronically controlled yaw protection
Speed regulation Electronically controlled yaw
Working temperature -40¡æ¡«80¡æ
Lubrication Grease injection
