| Model |
FT-300Q4 |
FT-400Q4 |
FT-500Q4 |
| Rated power |
300W |
400W |
500W |
| Maximum power |
310W |
410W |
510W |
| Rated voltage |
12V/24V |
12V/24V |
24V |
| Start up wind speed |
1.5m/s |
1.5m/s |
1.5m/s |
| Rated wind speed |
11m/s |
11m/s |
12m/s |
| Survival wind speed |
45m/s |
45m/s |
45m/s |
| Top net weight |
25kg |
26kg |
27kg |
| Wheel diameter |
1.4m |
1.4m |
1.4m |
| Blades number |
4 |

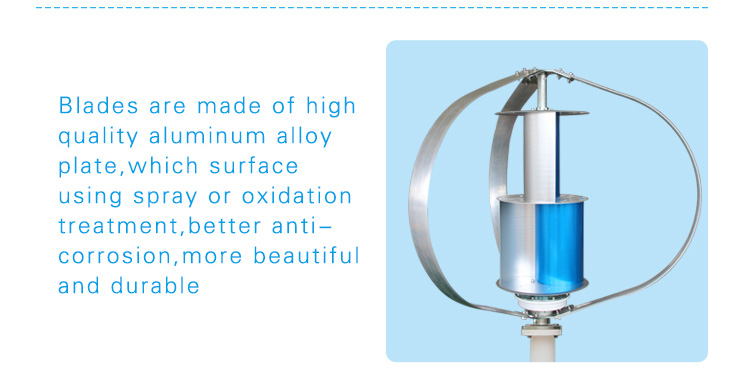

| Blades material |
Aluminum alloy |

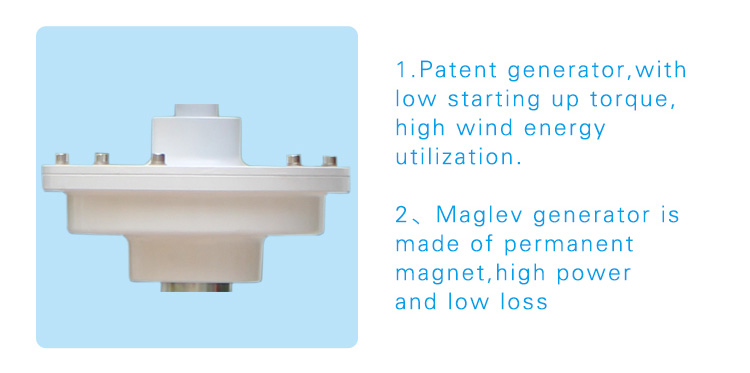

| Generator |
Three phase permanent magnet ac generator/ maglev generator |
| Control system |
Electromagnet |
| Speed regulation |
Automatically windward |
| Working temperature |
-40¡æ¡«80¡æ |
|
|
|
|
