Model FT-1000L FT-1500L FT-2000L FT-2500L
Rated power 1000W 1500W 2000W 2500W
Maximum power 1200W 1700W 2300W 2800W
Rated voltage 48V 48V 48V/96V 48V/96V
Start up wind speed 2.5m/s 2.5m/s 2.5m/s 2.5m/s
Rated wind speed 11m/s 11m/s 11m/s 11m/s
Survival wind speed 45m/s 45m/s 45m/s 45m/s
Top net weight 45kg 50kg 55kg 60kg
Wheel diameter 2.9m 3.2m 3.7m 4.7m
Blades number 3

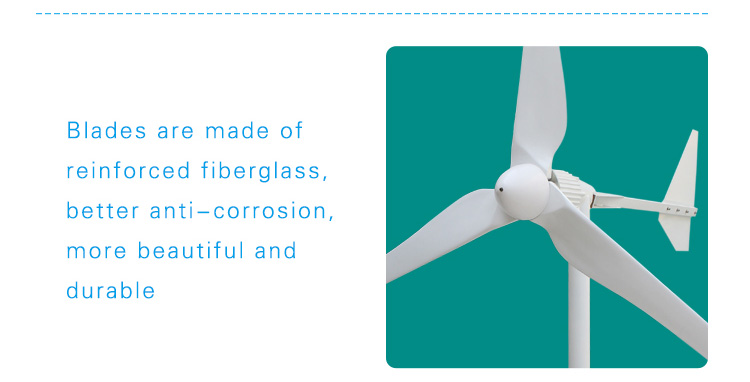

Blades material Reinforced glass fiber

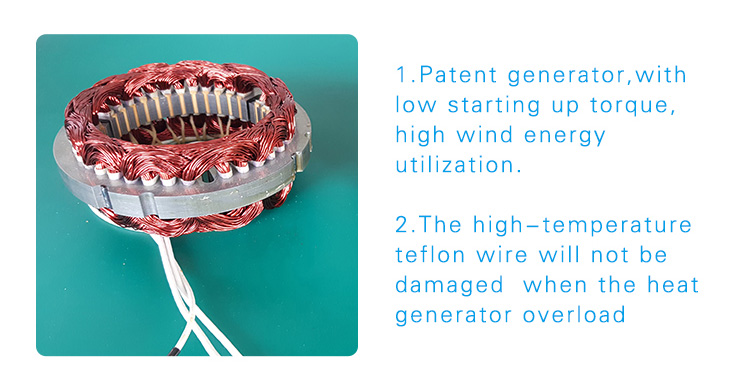

Generator Three phase permanent magnet ac generator
Magnetic steel NdFeB
Generator case Die-casting aluminum
Control system Electromagnet/ wind wheel yaw
Speed regulation Automatically adjust windward
Working temperature -40¡æ¡«80¡æ
Lubrication Grease injection
