| Model |
FT-100Q2 |
FT-200Q2 |
FT-300Q2 |
| Rated power |
100W |
200W |
300W |
| Maximum power |
130W |
220W |
310W |
| Rated voltage |
12V/24V |
12V/24V |
12V/24V |
| Start up wind speed |
1.5m/s |
1.5m/s |
1.5m/s |
| Rated wind speed |
10m/s |
11.5m/s |
13m/s |
| Survival wind speed |
45m/s |
45m/s |
45m/s |
| Top net weight |
11.5kg |
12kg |
12.5kg |
| Wheel diameter |
1.1m |
1.1m |
1.1m |
| Blades number |
9/12 |

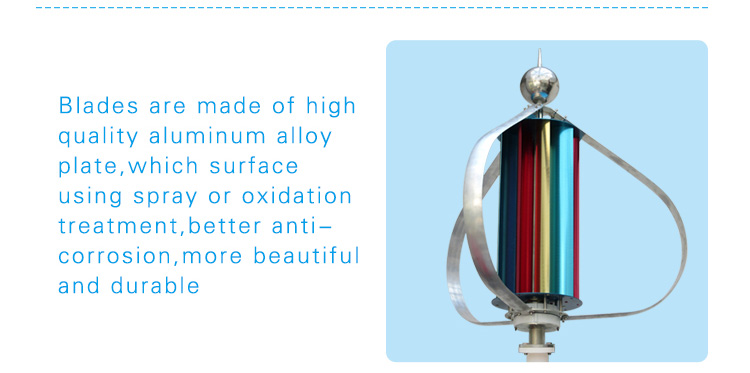

| Blades material |
Aluminum alloy |

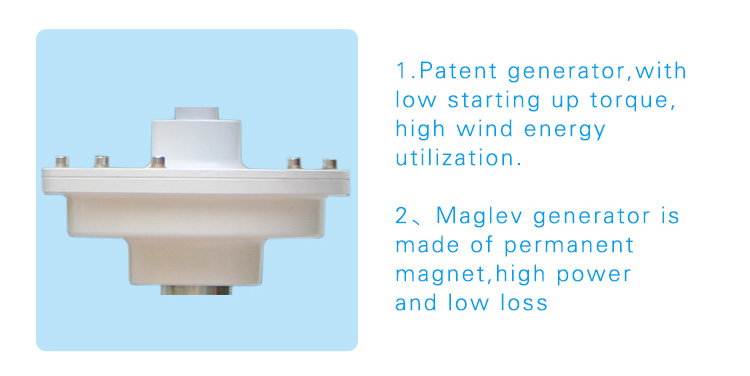

| Generator |
Three phase permanent magnet ac generator/ maglev generator |
| Control system |
Electromagnet |
| Speed regulation |
Automatically windward |
| Working temperature |
-40¡æ¡«80¡æ |
|
|
|
|
