| Model |
FT-100RV |
FT-200RV |
FT-300RV |
| Rated power |
100W |
200W |
300W |
| Maximum power |
130W |
220W |
310W |
| Rated voltage |
12V/24V |
12V/24V |
12V/24V |
| Start up wind speed |
2m/s |
2m/s |
2m/s |
| Rated wind speed |
11m/s |
11m/s |
12m/s |
| Survival wind speed |
45m/s |
45m/s |
45m/s |
| Top net weight |
11kg |
11.5kg |
12kg |
| Wheel diameter |
0.9m |
0.9m |
0.9m |
| Blades number |
5 |

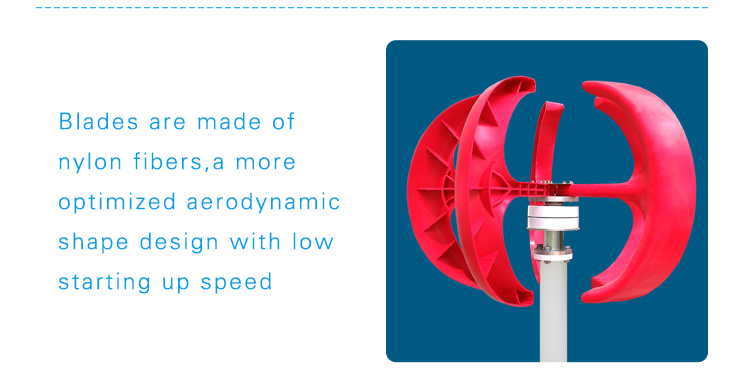

| Blades material |
Nylon fiber |
| Generator |
Three phase permanent magnet ac generator/ maglev generator |
| Control system |
Electromagnet |
| Speed regulation |
Automatically windward |
| Working temperature |
-40¡æ¡«80¡æ |
|
|
|
|
