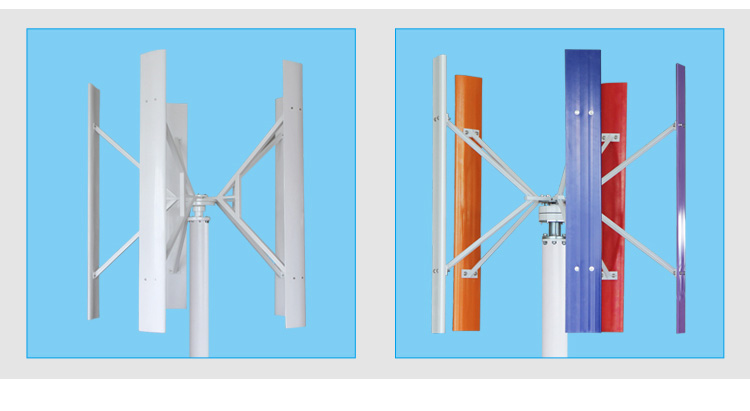

Model FT-50H FT-100H FT-200H FT-300H FT-300H FT-400H FT-500H FT-600H FT-600H
Rated power  50W  100W  200W 300W 300W 400W 500W 600W 600W
Maximum power   60W   120W   220W 320W 330W 420W 515W 610W 635W
Rated voltage 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V 12V/24V  48V  48V
Start up wind speed    2m/s    2m/s    2m/s    2m/s    1.8m/s    2m/s    2m/s    2m/s    1.8m/s
Rated wind speed 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s
Survival wind speed    35m/s    35m/s    35m/s    35m/s    35m/s    35m/s    35m/s    35m/s    35m/s
Wheel diameter 1m 1m 1.2m 1.4m 1.2m 1.4m 1.6m 1.8m 1.8m
Wheel height 1.0m 1.2m 1.4m 1.6m 1.4m 1.6m 1.8m 2m 2m
Blades number 5

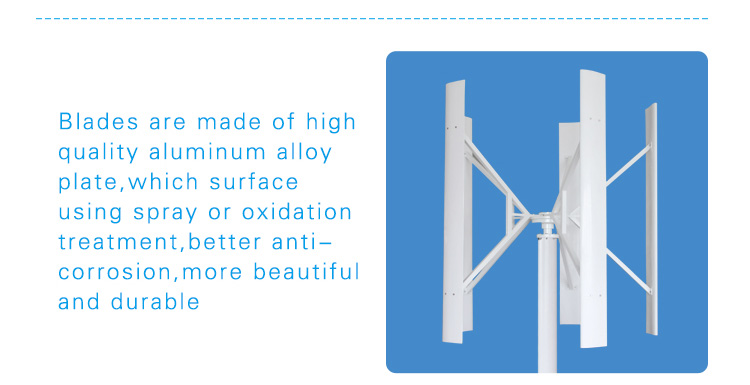

Blades material Aluminum alloy

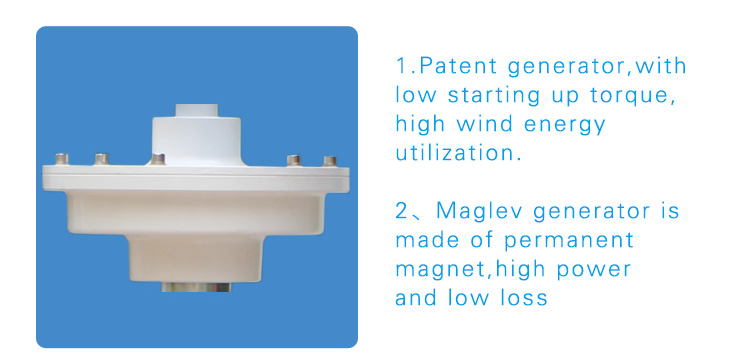

Generator Three phase permanent magnet ac generator/ maglev generator
Control system Electromagnet
Speed regulation Automatically windward
Working temperature -40¡æ¡«80¡æ



Model NE-800H NE-1000H NE-1500H NE-2000H NE-3000H NE-5000H NE-10000H NE-20000H
Rated power 800W 1kW С2kW 2kW 3kW 5kW 10kW 20kW
Maximum power 530W  1.2kW 2kW 2.2kW  3.5kW  5.5kW  12kW  23kW
Rated voltage  48V  48V  48V/96V  48V/96V 96V/120V  120V/220V  360V  360V
Start up wind speed    2m/s    2m/s    2m/s    2m/s 2m/s 2m/s   2.5m/s   2.5m/s
Rated wind speed 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s 12m/s
Survival wind speed    35m/s    35m/s    35m/s    35m/s 35m/s 35m/s 35m/s 35m/s
Wheel diameter 2m 2.2m 2.55m 2.55m 2.85m 3.6m 5.8m 7.6m
Wheel height 2.2m 2.4m 2.8m 3m/2.6m 3.5m/3m 4.5m/4m 8m/6m 10m/9m
Blades number 5
Blades material Aluminum alloy  Glass fiber Aluminum alloy
Generator Aluminum alloy
Control system Three phase permanent magnet ac generator/ maglev generator
Speed regulation Electromagnet
Working temperature -40¡æ¡«80¡æ
