| Model |
FT-300M |
FT-400M |
| Rated power |
300W |
400W |
| Maximum power |
320W |
410W |
| Rated voltage |
12V/24V |
12V/24V |
| Start up wind speed |
2.0m/s |
2.0m/s |
| Rated wind speed |
11m/s |
11.5m/s |
| Survival wind speed |
50m/s |
50m/s |
| Top net weight |
9.2kg |
9.5kg |
| Wheel diameter |
1.35m |
1.55m |
| Blades number |
3/5 |
| Blades material |
Nylon fiber |

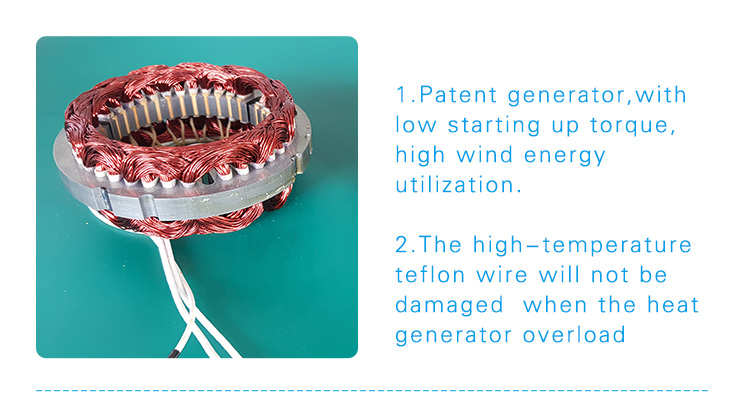

| Generator |
Three phase permanent magnet ac generator |
| Magnetic steel |
NdFeB |
| Generator case |
Die-casting aluminum |
| Control system |
Electromagnet |
| Speed regulation |
Automatically adjust windward |
| Working temperature |
-40¡æ¡«80¡æ |
|
|
|
|
